MODULAR
STEELWORK SOLUTIONS
Assembly Groups

Assembly Group BG50 F100-1/2"

Application

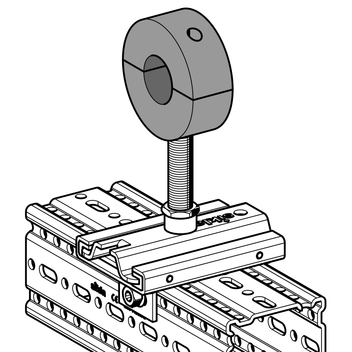

An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

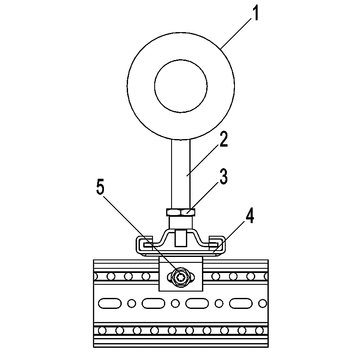

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit FR F 100 S 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT 1/2“
Item 4 Slide Set GS F100 1G
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

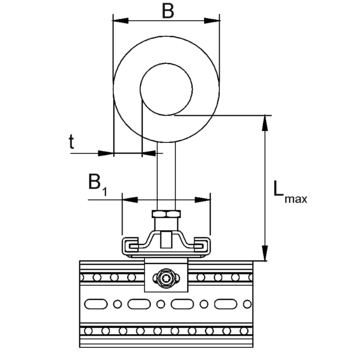

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Assembly parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Insulating body:
PUR foam (250 kg/m3 , B2) µ = 1200,
λ = 0,045 W/mK (0°C)
Area of use:
-50°C to +105°C
TypeNominal widths
[DN]
B1
[mm]
B
[mm]
t
[mm]
W
[kg]
Quantity
[pack]
Part
number
21/301510281301.901 113869
27/302010287301.901 113870
33/302510293301.911 113871
42/3032102102301.921 113872
48/3040102108301.921 113873
60/3050102120302.011 113874
76/3065102136302.131 113875
89/3080102149302.181 113876
114/40100102195402.761 113877
