MODULAR
STEELWORK SOLUTIONS
Assembly Groups

Assembly Group BG54 F100

Application

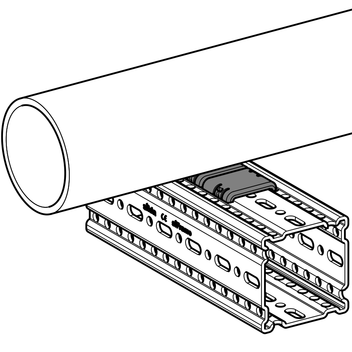

An Assembly Group for the supporting of pipes without complex requirements and without heat insulation on siFramo beam sections. This allows free sliding of the pipe in all directions on the Beam Section TP F 100.

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled. An Assembly Group comprises 3 U-UB pads.

Parts list:
Item 1 Pad U-UB F 100

Installation

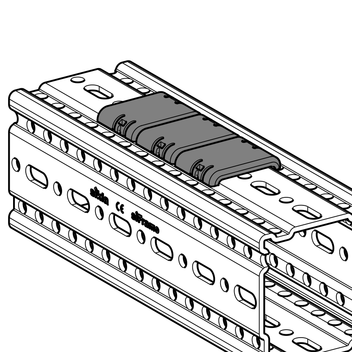

According to the anticipated sideways movement of the supported pipes, 1 to 3 U-UB pads should be clicked into the beam section.

Number
U-UB pad

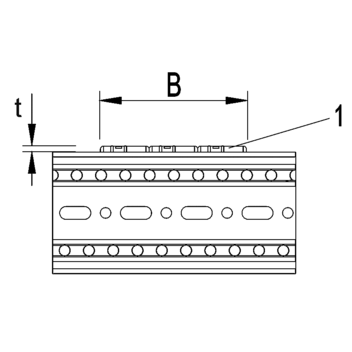

Width B
[mm]
t
[mm]
1 40 5
2 80 5
3 120 5

Technical Data

Material:
Polyamide PA 6.0
Area of use:
-20°C to +130°C
TypeNominal widths
[DN]
W
[kg]
Quantity
[pack]
Part
number
F 10015 - 3000.031 113913
