Assembly Groups

Assembly Group BG51 F80

Application

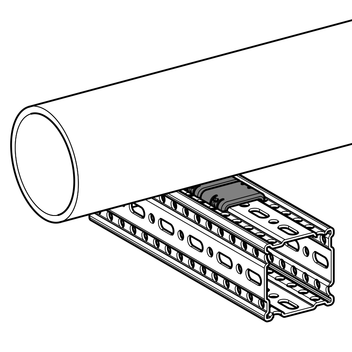

An Assembly Group for the supporting of pipes without complex requirements and without heat insulation. This allows free sliding of the pipe in all dimensions on the Beam Section TP F 80.

Scope of delivery

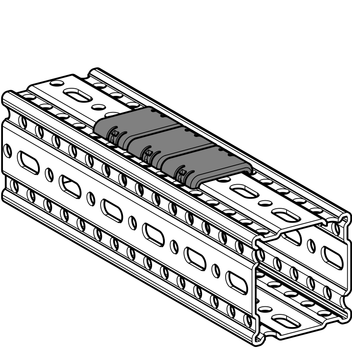

Each Assembly Group is pre-assembled, packed and labeled. An Assembly Group comprises 3 U-UB pads.

Parts list:
Item 1 Pad U-UB F 80

Installation

According to the anticipated sideways movement of the supported pipes, 1 to 3 U-UB pads should be clicked into the beam section.

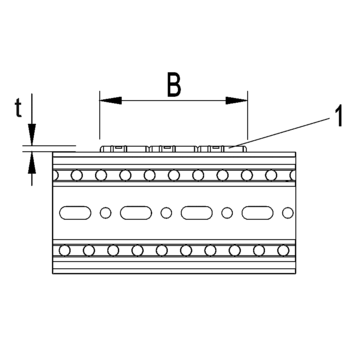

Number
U-UB pad
Width B
[mm]
t
[mm]
1 40 5
2 80 5
3 120 5

Technical Data

Material:
Polyamide PA 6.0
Area of use:
-20°C to +130°C
TypeNominal widths
[DN]
W
[kg]
Quantity
[pack]
Part
number
F 8015 - 1500.031 112742
