Pressix CC 41 - Channel System

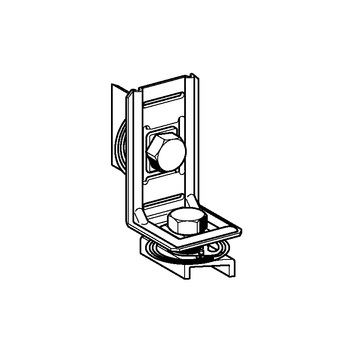

Angle Connector CN CC 41-90°
Pre-assembled connecting element especially for frame structures made of channels.

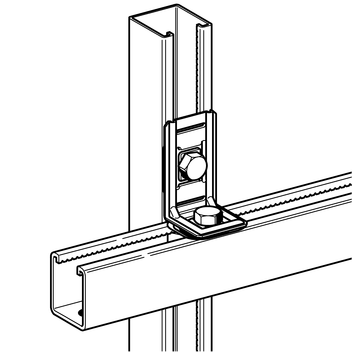

- High-speed assembly system for 90° connection of Channels MS 41.

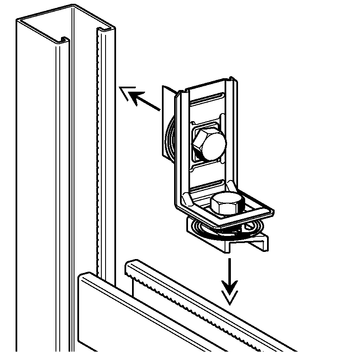

- Locks automatically by pushing down the bolt head and at the same time supports its own weight.
- Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping for high stiffness.
| Working load:|| F = 4.0 kN as axial load per crossbar with 2 CC Angle Connectors 90°|
| Torque:|| 40 Nm|
| Material:|| Steel, pre-galvanised according to DIN EN 10346 / electro-galvanised|
