Assembly Groups

Assembly Group BG14 F80-1/2"

Application

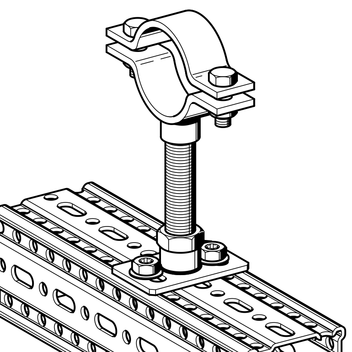

An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

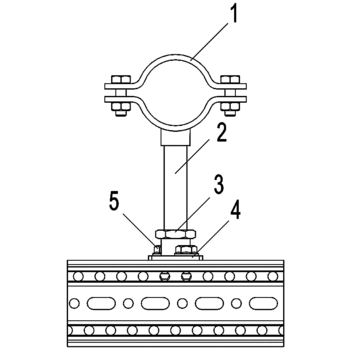

Parts list:
Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit F 80 1/2" consists of:
Item 2 Threaded Tube 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Mounting Plate GPL F80-1/2"
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

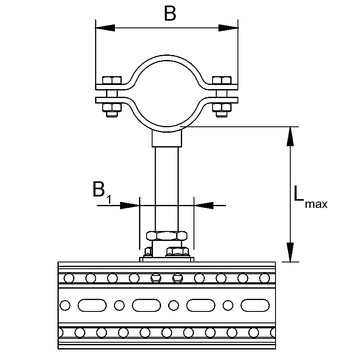

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP

TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1517 - 2250850.831 110209
DN 2023 - 2750920.841 110210
DN 2530 - 34501000.871 110211
DN 3240 - 44501120.911 110212
DN 4045 - 49501170.931 110213
DN 5057 - 61501391.151 110214
DN 6573 - 77501561.231 110215
DN 8085 - 89501681.291 110216
DN 100109 - 115501941.581 110217
