Assembly Group BG15 F80-1/2"

Application

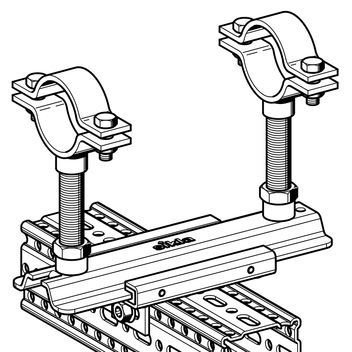

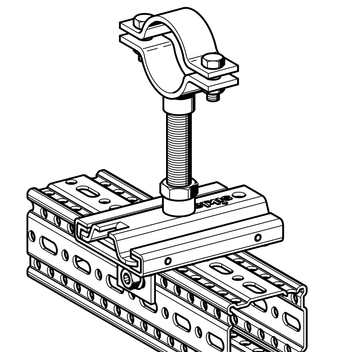

An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2". The Assembly Group is designed for use with the Beam Section
TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

Parts list:

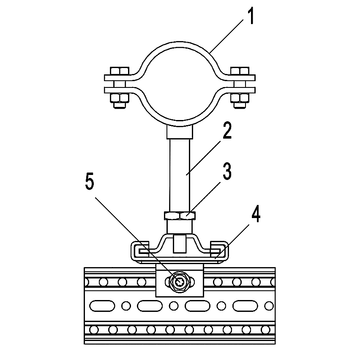

Item 1 Pipe Clamp Stabil I-1/2"
Assembly Kit MKit FR F 80 S 1/2" / L 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Slide Set GS F80 1G / Slide Set GS F80 1G2
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

Technical Data

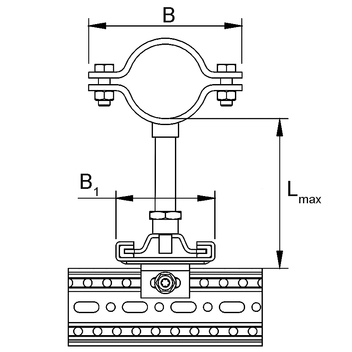

Lmax, vertical = 200 mm
Lmax, horizontal = not recommended

Material:
Pipe clamp and connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
TypeSize range
[mm]
B1
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
DN 1516 - 22102851.981 110227
DN 2023 - 27102921.991 110228
DN 2530 - 341021002.021 110229
DN 3239 - 441021122.061 110230
DN 4044 - 491021172.081 110231
DN 5057 - 611021392.301 110232
DN 6573 - 771021563.741 110233
DN 8085 - 891021683.861 110234
DN 100109 - 1161021944.441 110235
