Assembly Group BG44 F80-1/2"

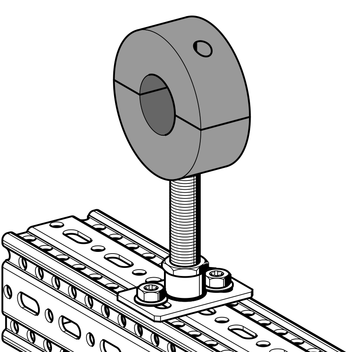

Application

An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2".

Scope of delivery

Each Assembly Group is pre-assembled, packed and labeled.

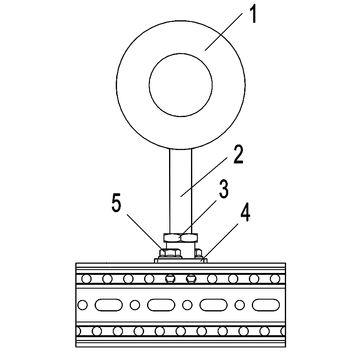

Parts list:
Item 1 Chilled Water Clamp RB
Assembly Kit MKit F 80 1/2" consists of:
Item 2 Threaded Tube GR 1/2" x 200
Item 3 Locking Nut NT G 1/2"
Item 4 Mounting Plate GPL F80-1/2"
Item 5 Self Forming Screw FLS F

Installation

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.

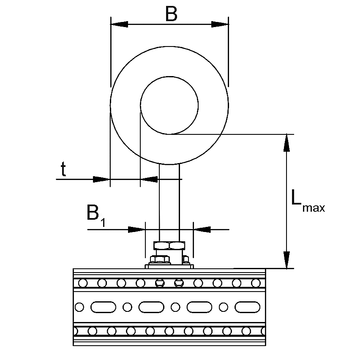

Technical Data

Lmax, vertical = 200 mm
Lmax, horizontal = 150 mm

Material:
Connecting parts:
Steel, HCP
Bolts and nuts:
Steel, HCP
Insulating body:
PUR foam (250 kg/m3 , B2), µ = 1200
λ = 0,045 W/mK (0°C)
Area of use:
-50°C to +105°C
TypeNominal widths
[DN]
B1
[mm]
B
[mm]
t
[mm]
W
[kg]
Quantity
[pack]
Part
number
21/30155081300.731 110283
27/30205087300.731 110284
33/30255093300.741 110285
42/303250102300.751 110286
48/304050108300.751 110287
60/305050120300.841 110289
76/306550136300.961 110290
89/308050149301.011 110291
114/4010050195301.591 110292
